Directional Antenna

Expand the range of your wireless monitoring efforts

Arrow

Request a demo

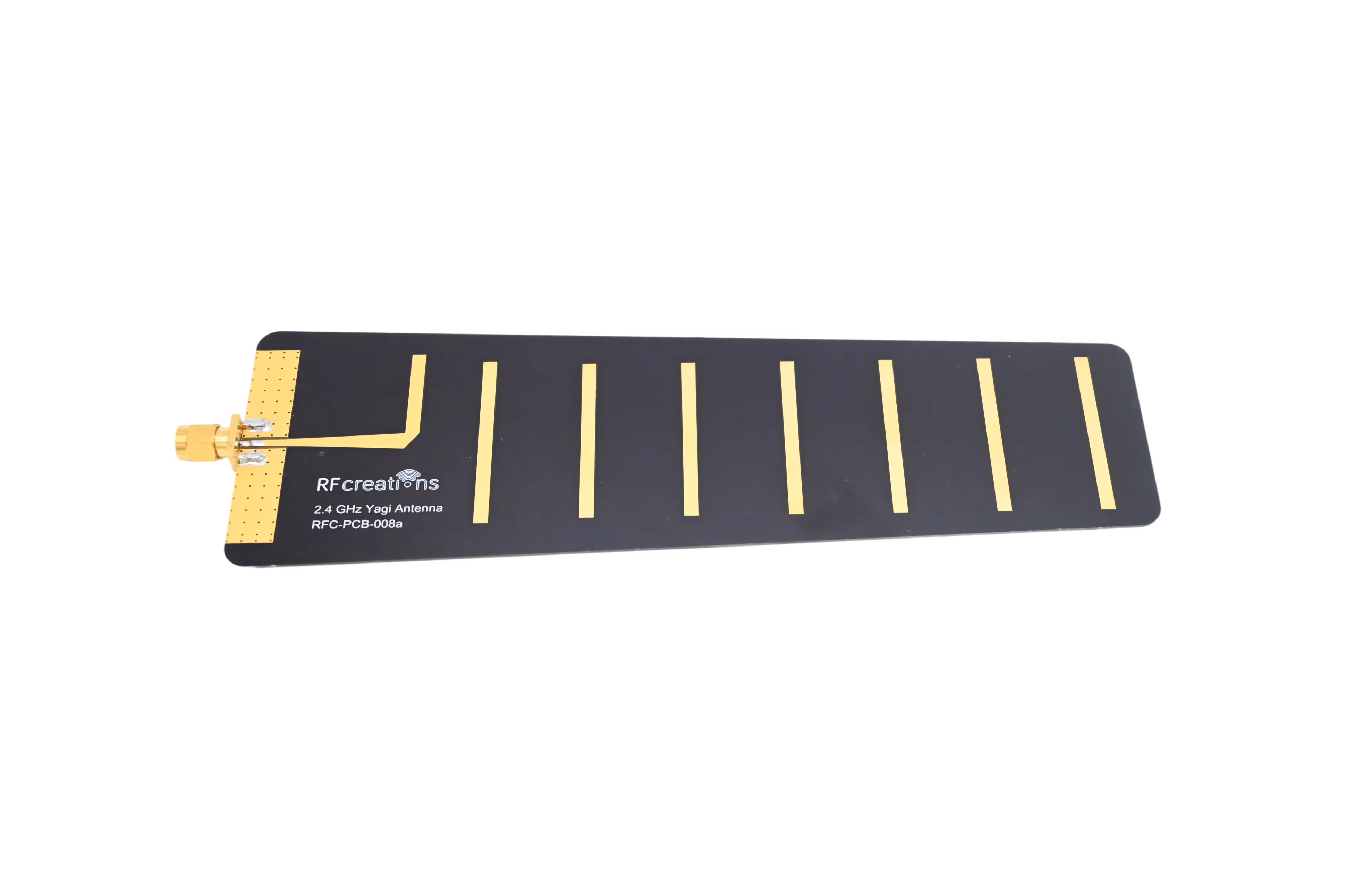

This 9-element directional antenna gives you a longer range that’s particularly suited for RF monitoring applications and direction-finding—designed specifically for the PANalyzr hardware.

directional-antenna
directional-antenna

Features

Frequency range VSWR < 2:1 · 2.375 GHz – 2.500 GHz

Frequency range VSWR < 1.5:1 · 2.400 GHz – 2.4835 GHz

3dB Bandwidth · 300 MHz

Peak gain · 12 dBi

Polarisation · Linear

Impedance · 50 Ohms

Dimensions (mm) · 195 x 62

Connector · SMA male or SMA female

Flammability rating · UL94V-0

One year year of software updates & support included

Yearly support renewal and lifetime support plan available upon request. Contact us for more details.

Arrow

Download Spec Sheet

Accessories & add-ons

iot-exp-pack

IoT Expansion Pack

Add powerful, multi-protocol wireless sniffing capabilities to your toolkit, with seamless integration into PANalyzr and Wireshark.

View product
amplifier-kit

Amplifier Kit

Add range to sniffing and device location with high performance, low noise amplifiers selected specifically for compatibility and performance with PANalyzr.

View product
FindIT

FindIT

The 9-element directional antenna that gives you a longer range, particularly suited for RF monitoring applications and direction-finding.

View product
